Fortinet NSE 4 - FortiOS 7.6 Administrator - NSE4_FGT_AD-7.6 Practice Questions

Explanation:

This question tests SD-WAN performance SLA functionality in FortiOS 7.6, which monitors link health for intelligent path selection. SLAs probe interfaces using configurable metrics and measurement methods to mark links up/down, influencing routing in SD-WAN rules. ​

✔️Why A Is Correct:
Performance SLAs measure link quality using latency, jitter, and packet loss (session loss). These thresholds determine if a link passes/fails, triggering route removal or failover in SD-WAN load balancing.

✔️Why C Is Correct:
All SLA targets—latency threshold (default 5ms), jitter threshold (default 5ms), and packet loss threshold (default 0%)—are fully configurable per SLA. This allows customization based on application needs like VoIP or general traffic. ​

✔️Why E Is Correct:
SLAs support active measurement (probing servers via ping/HTTP/TWAMP) and passive measurement (analyzing real firewall session data). Active uses probes; passive leverages existing traffic for realistic health checks without extra overhead. ​

❌Option B:
SLAs monitor SD-WAN member interface/link health, not FortiGate device state (CPU/memory). Device health uses separate monitors like hardware health checks, not performance SLAs. ​
No direct tie to FortiGate system status; focused solely on WAN link metrics.

❌Option D:
SLAs integrate with multiple strategies (lowest cost, best quality, maximum bandwidth, etc.), not exclusively lowest cost. Rules specify strategy; SLA provides pass/fail input for path selection. ​
Flexible across all SD-WAN strategies, not strategy-specific.

Reference:
⇒ https://docs.fortinet.com/document/fortigate/7.6.6/administration-guide/584396/sd-wan-performance-sla – Defines active/passive SLAs, jitter/loss metrics. ​

⇒ https://docs.fortinet.com/document/fortigate/7.6.4/administration-guide/867342/performance-sla-overview – Confirms configurable targets (latency/jitter/loss).

Explanation:

This question tests knowledge of FortiGate web filter profile compatibility with firewall policies. Certain web filter features, such as daily category usage quotas, only work with specific inspection modes. If the firewall policy uses an inspection mode that doesn’t support the feature, the profile will not appear in the policy dropdown.

✔️ Correct option:
The daily category usage quota in a web filter profile requires full (deep) inspection. If the firewall policy uses flow-based or no-inspection mode, the profile becomes unavailable. Option D correctly identifies that the mismatch between the profile’s feature set and the policy’s inspection mode is the reason it isn’t listed.

❌ Incorrect Options:

A. The web filter profile is already referenced in another firewall policy
The profile can be applied to multiple policies simultaneously, so being used elsewhere does not prevent it from appearing in the dropdown. This option misunderstands FortiGate’s design, as profile usage is not exclusive to a single policy.

B. The firewall policy is in no-inspection mode instead of deep-inspection
While no-inspection mode would indeed block some web filter features, the issue is more specific: it must support the feature set of the profile, not just any inspection type. Simply being in no-inspection mode is an incomplete explanation.

C. The naming convention used in the web filter profile is restricting it in the firewall policy
FortiOS does not restrict web filter profiles based on naming. The profile’s availability is determined by feature compatibility, not how it is named, making this option irrelevant.

Reference:
⇒ Fortinet Documentation – Category usage quotas

Explanation:

This question tests your understanding of how Dynamic IP Pools and NAT work in FortiOS, specifically regarding the limitations of One-to-One IP pools and how address exhaustion can prevent connectivity for new hosts.

✔️Why B Is Correct:
The current One-to-One IP pool "Internet-pool" is configured with the range "100.65.0.110-100.65.0.111," which provides only two public IP addresses. Since PC1 and PC2 are already successfully accessing the internet, they are likely consuming both addresses in this pool. When PC3 attempts to connect, no public IP addresses remain available for allocation. Extending the range to include 100.65.0.112 would add a third address, accommodating PC3 and resolving the exhaustion issue while keeping the One-to-One NAT type.

✔️Why D Is Correct:
Changing the IP pool type from "One-to-One" to "Overload" (also known as Port Address Translation or PAT) would resolve the issue without requiring additional public IP addresses. With Overload NAT, all three private IP addresses (10.0.11.1, 10.0.11.2, and 10.0.11.3) can share the same public IP address(es) by using unique source ports to differentiate sessions. This maximizes the use of the existing public IP range and would immediately allow PC3 to connect.

❌Why the Other Options Are Wrong:

A. In the system settings, set Multiple Interface Policies to enable:
This setting relates to how FortiGate handles traffic when multiple policies match the same interface. It is not related to IP pool exhaustion or NAT capacity and would not resolve the connectivity issue for PC3.

C. In the firewall policy, set match-vip to enable using CLI:
The match-vip setting is used for Destination NAT (Virtual IPs) configurations, specifically to control how traffic matches VIPs before policy lookup. This issue involves Source NAT (IP pools), and enabling match-vip would not affect the availability of source IP addresses for outbound connections.

Reference:
⇒ Fortinet Document Library: One-to-One IP pools
This official guide explains that One-to-One NAT maps one private IP to one public IP, requiring enough public addresses for each concurrent private host.

⇒ Fortinet Document Library: Overload IP pools
This resource confirms that Overload NAT (Port Address Translation) allows multiple private IP addresses to share a single public IP by mapping unique source ports, conserving public address space.

Explanation:

This question assesses understanding of Dead Peer Detection (DPD) modes in FortiGate IPsec VPNs. DPD is used to monitor the health of VPN tunnels and detect if the peer device is unreachable. The specific requirement here is that DPD probes should be sent only when there is no inbound traffic, ensuring the tunnel is checked for inactivity without generating unnecessary traffic.

✔️ Correct option:
On Idle mode is designed for this exact scenario. FortiGate will send DPD probes only when the tunnel is idle, meaning no inbound traffic is detected. If the tunnel is actively carrying traffic, probes are suppressed, avoiding redundant messages. This ensures the tunnel is monitored efficiently and the VPN can detect dead peers without impacting normal traffic flow.

❌ Incorrect Options:

A. On Demand
This mode sends DPD probes only when traffic is being sent and a response is required. It does not check idle tunnels and therefore does not meet the requirement of probing only when there is no inbound traffic.

B. Enabled
Enabled mode triggers DPD probes continuously at set intervals, regardless of tunnel activity. While it keeps the tunnel constantly monitored, it generates unnecessary traffic and does not fulfill the “only when idle” condition.

D. Usabled
This is not a valid DPD mode in FortiGate; selecting it would be incorrect as it does not exist in the configuration options.

Reference:
⇒ Fortinet Documentation – Configuring Dead Peer Detection
Confirms that On Idle mode sends DPD probes only when the tunnel is inactive, ensuring efficient monitoring without generating unnecessary traffic.

Explanation:

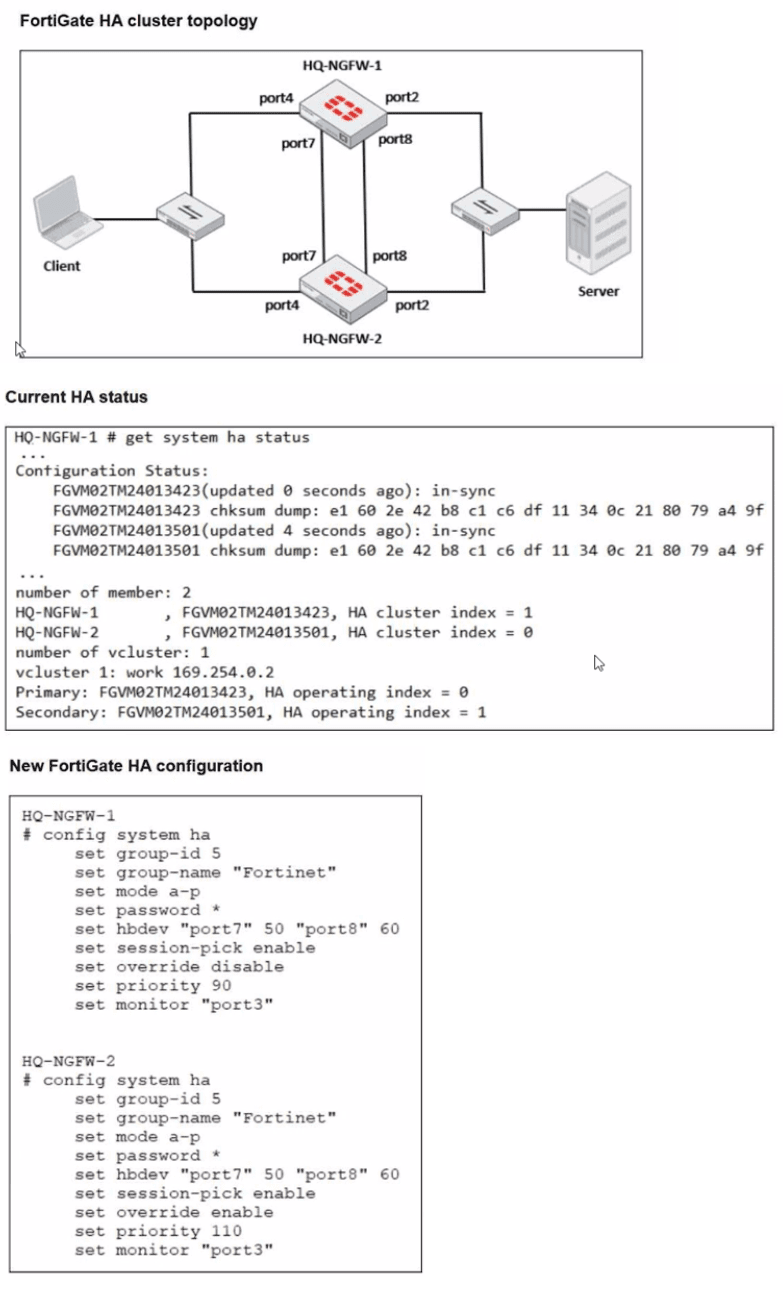

This question tests the understanding of the High Availability (HA) Master Selection Process in FortiOS. It specifically focuses on how the override setting alters the default selection criteria, prioritizing device priority over system uptime.

✔️Why This Is Correct:
By default, FortiGate HA selection follows the APPU order (Override disabled): Alive members > Priority > Previous primary (Uptime) > Unit SN.
When set override enable is configured on a cluster member, the selection order changes to Priority > Alive members > Previous primary > Unit SN.
In the exhibit, HQ-NGFW-2 is configured with set override enable and a higher priority (110) compared to HQ-NGFW-1 (priority 90). Because override is enabled on the member with the higher priority, the cluster will trigger a re-election and select HQ-NGFW-2 as the new primary.

❌Why the Other Options Are Wrong:

B. HQ-NGFW-1 will remain the primary:
This is incorrect because HQ-NGFW-2 has a higher priority (110 vs 90) and override is enabled, forcing a transition.

C. The HA cluster will become out of sync:
The override and priority settings are device-specific (not synchronized). Having different values for these settings does not cause a synchronization error.

D. HQ-NGFW-1 will synchronize the override disable setting:
As mentioned, these specific parameters are excluded from synchronization to allow for cluster management.

Reference:
⇒ FortiGate HA Primary Election
Confirms that the override setting moves the Priority criteria to the top of the selection list, allowing a higher-priority unit to preempt the current primary.

Explanation:

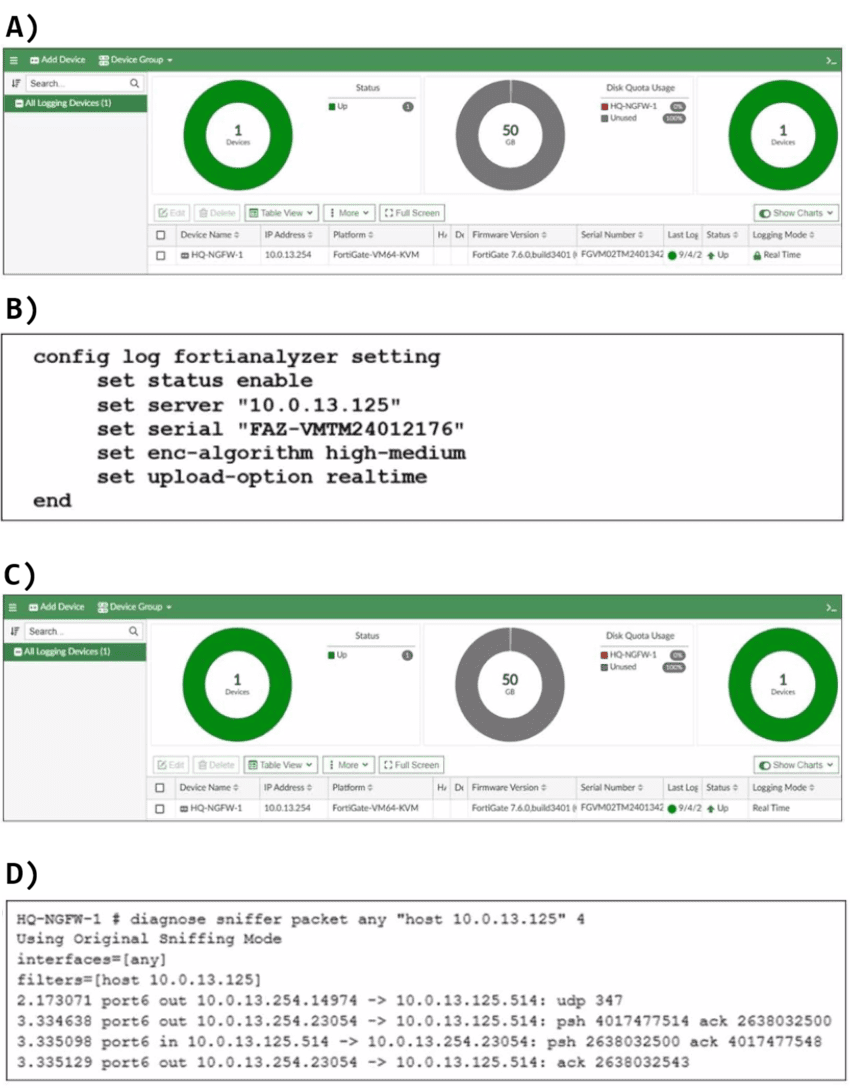

This question tests how to verify if reliable logging (also known as reliable syslog or OFTP over TCP with acknowledgment) is enabled when FortiGate sends logs to FortiAnalyzer. Reliable logging ensures logs are not lost by using TCP-based transmission with sequence numbers and acknowledgments, unlike default UDP. The key is to check the FortiGate configuration for the setting that enables reliable mode to FortiAnalyzer.

✔️ B. Option B
The CLI output shows the command config log fortianalyzer setting with set status enable, set server "10.0.13.125", and importantly set upload-option realtime. In FortiOS, upload-option realtime enables reliable logging to FortiAnalyzer (using OFTP over TCP with reliability features). This is the direct way to confirm reliable logging is active on HQ-NGFW-1.

❌ A. Option A
This is the FortiAnalyzer GUI showing the logging device (HQ-NGFW-1) as "Up" with "Real Time" logging mode. While it indicates the connection is active and logs are arriving in real time, it does not prove reliable logging is configured on the FortiGate side — only that FortiAnalyzer sees real-time logs.

❌ C. Option C
Similar to A, this is another FortiAnalyzer device list view showing HQ-NGFW-1 as "Up" with "Real Time" mode. It confirms connectivity and log reception but does not verify the reliable setting was enabled on the FortiGate configuration.

❌ D. Option D
This is a packet sniffer output on HQ-NGFW-1 showing UDP packets to 10.0.13.125:514 (standard syslog port). UDP is unreliable by nature (no acknowledgments). Seeing UDP traffic here actually suggests default/unreliable logging is in use — the opposite of reliable logging.

Reference:
⇒ https://docs.fortinet.com/document/fortigate/7.6.0/cli-reference/84566/fortios-cli-reference — CLI reference confirms upload-option {realtime | store-and-forward}; realtime = reliable logging with acknowledgments.

Explanation:

This question evaluates your understanding of FortiGate SD-WAN zone configuration, specifically how interfaces are assigned to zones. The exhibit shows a list of configured zones and a donut chart indicating SD-WAN members.

✅Correct option: D
The donut chart clearly shows port2 and port3 as SD-WAN members. However, the listed SD-WAN Zones (virtual-wan-link, Underlay, overlay) do not explicitly show port2 or port3 assigned as members under them. In FortiGate SD-WAN, interfaces must be assigned to an SD-WAN zone to participate. The exhibit indicates that port2 and port3 are part of the overall SD-WAN setup (as members of the virtual-wan-link interface), but they are not assigned to any of the specific, explicitly listed zones like Underlay or overlay in this partial view.

Why the Other Options Are Wrong:

❌ A. The Underlay zone contains no member.
The Underlay zone is shown with a plus sign next to it, indicating it is expandable and likely contains members, even if they are not explicitly displayed in this truncated view. If it truly had no members, it would either not be expandable or display a count of zero members.

❌ B. The virtual-wan-link and overlay zones can be deleted.
The virtual-wan-link is the primary SD-WAN interface and cannot be deleted as long as SD-WAN is enabled and has members. The overlay zone might be deletable if it's a custom zone and has no members or policies tied to it, but the virtual-wan-link cannot.

❌ C. The Underlay zone is the zone by default.
There is no "Underlay zone" by default in FortiGate SD-WAN. The main SD-WAN interface is called virtual-wan-link. Custom zones like "Underlay" or "overlay" are created by administrators to group interfaces.

Reference:
⇒ FortiGate SD-WAN Configuration Guide - Zones (This documentation explains how SD-WAN interfaces are grouped into zones and how the virtual-wan-link interface functions as the primary SD-WAN interface.)
