Fortinet FCSS_EFW_AD-7.6 Practice Questions

Explanation:
The key to interpreting this output lies in the npu_flag field.

npu_flag=20:
This hexadecimal value (0x20) is a bitmask that indicates the state of the IPsec Security Associations (SAs) relative to the Network Processing Unit (NPU). The value 0x20 specifically means that the tunnel is NPU accelerated.

npu_gwy=10.10.2.2: This shows the IP address of the peer gateway as known to the NPU.
npu_lgwy=10.10.1.1: This shows the IP address of the local gateway as known to the NPU.

When an IPsec tunnel is established, two unidirectional SAs are created: one for inbound traffic and one for outbound traffic. For the tunnel to be fully accelerated by the NPU, both SAs must be successfully offloaded.
The presence of the npu_flag=0x20 and the specific NPU gateway addresses confirms that this offloading process has been successful for both SAs. The NPU now has the necessary information to encrypt and decrypt traffic for this tunnel at hardware speed, bypassing the main CPU.

Why the other options are incorrect:

A. IPsec SAs cannot be offloaded:
This is the direct opposite of what the output shows. The npu_flag being set to 0x20 is explicit proof that offloading has occurred.

C. Only the outbound IPsec SA is copied to the NPU:
For a tunnel to be functional and accelerated, both SAs must be offloaded. A partial offload would not result in the npu_flag=0x20 status, and tunnel performance would be suboptimal.

D. Only the inbound IPsec SA is copied to the NPU:
Similarly, this is incorrect. The NPU needs both the encryption (outbound) and decryption (inbound) keys and parameters to handle the full flow of traffic. The output indicates the tunnel is fully accelerated.

Reference

Fortinet Documentation:
The FortiOS CLI Reference guide for diagnose vpn tunnel commands explains the meaning of the various output fields.
Troubleshooting Guide:
Knowledge Base articles and troubleshooting guides on Fortinet's support website frequently reference npu_flag=0x20 as the indicator for a successfully NPU-offloaded IPsec tunnel. A value of npu_flag=0x00 would indicate that the tunnel is running in CPU mode, which is not the case here.

Explanation:
In a large-scale hub-and-spoke VPN deployment (like the one shown with SD-WAN or IPsec overlays), the hub FortiGate can have a very large number of BGP peers (the spokes). Manually configuring each spoke as an individual BGP neighbor is time-consuming, error-prone, and difficult to scale.
The two commands provided are BGP features designed specifically to minimize configuration in such scenarios:

A. neighbor-group:
This command is used to create a template for BGP neighbor configuration. Instead of applying the same set of parameters (e.g., remote-as, password, soft-reconfiguration, timers) to dozens of individual neighbor statements, you define them once in a neighbor-group. You then simply assign each spoke neighbor to this group.
How it minimizes configuration: It centralizes and standardizes the common configuration for all spokes, drastically reducing the number of configuration lines and making future changes much easier (you change the group once instead of changing every single neighbor).

C. neighbor-range:
This command allows you to define a subnet or range of IP addresses from which the hub FortiGate will accept BGP peerings. In a dynamic spoke environment where spokes get their overlay IP addresses from a specific pool (e.g., 10.1.0.0/24 and 10.2.0.0/24), you can configure the hub to peer with any IP in that range.
How it minimizes configuration: It eliminates the need for a separate, explicit neighbor configuration statement for every single spoke. A single neighbor-range command can cover hundreds of potential spokes.

Why the other options are incorrect:

B. route-reflector-client:
This command is a crucial part of the solution for a hub-and-spoke topology, as it allows the hub to reflect routes between spokes, avoiding the need for a full mesh of iBGP peers. However, the question specifically asks for commands that "minimize the configuration." While route-reflector-client is functionally necessary, it is typically applied within the neighbor-group or to individual neighbors. It doesn't itself reduce the number of configuration lines needed to define the peers; neighbor-group and neighbor-range do that.

D. ibgp-enforce-multihop:
This command is used when an iBGP peer is not on a directly connected network. It is often required in overlay networks. Like option B, it is a functional command that might be placed inside the neighbor-group, but it does not inherently reduce the amount of configuration needed to define multiple peers.

Reference
Fortinet Documentation: The FortiOS Handbook for Routing, specifically the BGP chapter, details the use of neighbor-group and neighbor-range for simplifying configuration in large-scale deployments.

Explanation:
The core problem is the use of zero (0.0.0.0/0) phase 2 selectors. This configuration means "encrypt all traffic that passes through this tunnel interface." While simple to configure, it is a major operational risk during network migrations because any new subnet or route added to the network might unexpectedly be sent over the IPsec tunnel, causing performance issues, blackholing traffic, or breaking other network paths.

The following two approaches prevent this by explicitly defining what traffic should use the tunnel:

C. Clearly indicate to the VPN which segments will be encrypted in the phase two selectors.
This is the most direct solution. Instead of using 0.0.0.0/0, you explicitly define the specific source and destination subnets that should be encrypted by the tunnel. For example, you would configure Phase 2 with a source of 10.1.0.0/16 and a destination of 10.2.0.0/16. This ensures that only traffic between these specific networks is eligible for encryption through the tunnel. Any new subnets added to the network will not match the selector and will not be sent over the VPN, preventing the "impact on network operations."

A. Use routing protocols to specify allowed subnets over the tunnel.
This is a more dynamic and scalable approach. You run a routing protocol (like BGP or OSPF) over the IPsec tunnel interface. The phase 2 selectors can still be specific or even broad, but the key control mechanism is the routing table. Each side of the VPN only advertises the specific subnets that are meant to be reachable over the tunnel. Even if the Phase 2 selector technically allows more traffic, a router (including a FortiGate) will only send traffic over the tunnel if there is a specific route for the destination in its routing table that points to the tunnel interface. This provides precise control over what traffic is forwarded into the encrypted path.

Why the other options are incorrect:

B. Configure an IPsec-aggregate to create redundancy between each firewall peer.
An IPsec aggregate is used to combine multiple physical or logical interfaces (e.g., multiple internet links) into a single redundant IPsec tunnel. It deals with high availability and traffic load-sharing, not with controlling which source/destination subnets are encrypted. It does not solve the problem of overly broad traffic selectors.

D. Configure an IP address on the IPsec interface of each firewall to establish unique peer.
Assigning an IP address to the IPsec tunnel interface is a standard and recommended practice for several reasons (e.g., running routing protocols, diagnostics). However, simply assigning an IP address does nothing to restrict the traffic selectors. A tunnel interface with an IP address can still have a Phase 2 selector of 0.0.0.0/0. This command does not prevent the problem described.

Reference
Fortinet Documentation: The FortiOS Handbook for IPsec VPN extensively covers Phase 2 selector configuration and the use of dynamic routing over IPsec tunnels.
Best Practice: It is a universal network security best practice to use the most specific traffic selectors possible in IPsec configurations to avoid unintended consequences and to clearly define the security policy.

Explanation:
The exhibit shows a multi-VDOM environment. The key detail is that the "Management VDOM" for both Core1 and Core2 is set to root. In FortiOS, when a VDOM is in NGFW Mode (Profile-based), it relies on the Management VDOM to handle all communication with the FortiGuard Distribution Network (FDN) for services like Web Filtering, Antivirus, and IPS updates.

Let's break down why these two options are the most likely causes:

D. The root VDOM does not have access to any valid public FDN.
This is the most common cause. If the root VDOM itself cannot reach the internet (due to a missing route, failed interface, or incorrect DNS settings after maintenance), it cannot download the necessary Web Filtering databases and updates. Since Core1 and Core2 depend entirely on the root VDOM for these updates, the Web Filter service in those VDOMs will fail to function correctly. Any break in the root VDOM's internet connectivity will immediately impact all VDOMs that use it as their Management VDOM.

B. The root VDOM does not have a VDOM link to connect with the Core1 and Core2 VDOMs.
VDOM links are the internal pathways that allow VDOMs to communicate with each other. For the root VDOM to distribute FortiGuard updates to Core1 and Core2, there must be a functional VDOM link between them. A misconfiguration or removal of this link during the maintenance window would sever this critical communication channel. Even if the root VDOM has perfect internet access, the updates cannot be delivered to the core VDOMs without a VDOM link.

Why the other options are incorrect:

A. The root VDOM does not have access to FortiManager in a closed network.
While FortiManager can be used to distribute updates in offline/disconnected networks, the primary source for live updates is the public FDN. The problem statement does not mention a FortiManager or a closed network setup. The most direct and common requirement is access to the public FDN.

C. The Core1 and Core2 VDOMs must also be enabled as Management VDOMs to receive FortiGuard updates.
This is incorrect and goes against the purpose of a central Management VDOM. The whole point of designating the root VDOM as the Management VDOM for Core1 and Core2 is to avoid having to configure internet access and FortiGuard licensing in every single VDOM. Only the Management VDOM needs this access; the other VDOMs are "clients" of it.

Reference

Fortinet Documentation:
The FortiOS Administration Guide on "FortiGuard services in multi-VDOM mode" explains the requirement for the Management VDOM to have internet access and for VDOM links to be established.
CLI Verification:
To check FortiGuard connectivity from the root VDOM: execute ping update.fortiguard.net
To diagnose VDOM links and routing: get system interface (look for VDOM link interfaces) and diagnose sys vd list

Explanation:

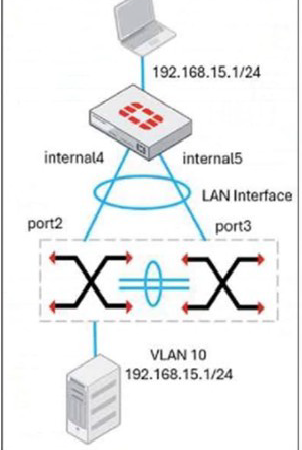

The exhibit shows a single "LAN Interface" on the FortiGate connected to two separate FortiSwitch devices (internal4 and internal5). This is a classic depiction of a Multi-Chassis Link Aggregation Group (MCLAG) topology.

Let's break down why these two conclusions are correct:

B. The LAN interface must use a 802.3ad type interface.
For a switch to be part of an MCLAG, the link to the FortiGate must be a member of a Link Aggregation Group (LAG). The FortiGate presents this LAG as a single logical interface of type 802.3ad (also known as LACP). The diagram shows two physical connections from two different switches terminating into a single logical interface on the FortiGate. This is only possible if that LAN interface is an aggregate (802.3ad) interface, with port2 and port3 as its members.

C. This connection is using a FortiLink to manage VLANs on FortiGate.
"FortiLink" is the proprietary technology that allows a FortiGate to automatically discover, authorize, and manage FortiSwitch units. When a FortiGate interface is designated as a FortiLink, it becomes the management and control channel for the switches connected to it. The exhibit shows the LAN interface with a VLAN subinterface (VLAN 10) and an IP address, which is the typical setup for the FortiGate to act as the router and DHCP server for that VLAN. The FortiLink connection automatically handles the VLAN configuration and pushes it down to the managed FortiSwitches.

Why the other options are incorrect:

A. You must enable STP or RSTP on FortiGate and FortiSwitch to avoid layer 2 loopbacks.
This is not a requirement in this specific MCLAG topology. The primary purpose of MCLAG is to provide a loop-free, active-active multi-chassis link aggregation. The MCLAG peers (the two FortiSwitches) synchronize their state to prevent layer 2 loops. While STP is often enabled as a safety net, it is not the primary loop prevention mechanism here, and its absence would not cause a loop in a properly configured MCLAG.

D. FortiGate is using an SD-WAN-type interface to connect to a FortiSwitch device with MCLAG.
This is incorrect. An SD-WAN zone is used for connecting to multiple WANs (like different ISPs) for the purpose of intelligent path selection and redundancy. It is a layer 3 routing construct. The connection to FortiSwitches is a layer 2 switching and link aggregation function. The interface type used for MCLAG is 802.3ad, not SD-WAN.

Reference
Fortinet Documentation: The FortiOS Handbook for FortiSwitch integration and the FortiSwitch Guide for MCLAG configuration detail this exact setup.
The logical interface on the FortiGate is an 802.3ad aggregate.
The interface is designated as a FortiLink.
The FortiGate configures the VLAN interface on top of this FortiLink, which is then distributed to the MCLAG peer switches.

Explanation:
The exhibit depicts two distinct OSPF networks separated by the untrusted Internet. The corporate network is a multi-area OSPF domain, while the remote office is a single network. Successful integration requires a solution that accomplishes two critical tasks simultaneously:

1.Secure Connectivity:
Establishing an encrypted tunnel across the Internet to connect the two private networks.
2.Dynamic Routing:
Enabling the dynamic exchange of routing information between the two OSPF domains so each side automatically learns the other's routes.

Only option D fulfills both requirements. An IPsec VPN creates a secure, logical tunnel (often presented as a virtual tunnel interface) between the two FortiGates. Running OSPF directly over this tunnel interface allows the two devices to form an OSPF adjacency. The corporate FortiGate will then dynamically advertise the remote office's 192.168.1.0/24 network into its OSPF process, and the remote office will learn all corporate routes, creating a single, integrated routing domain.

Why the Other Options Are Incorrect

A. Implement BGP:
While BGP is a powerful WAN protocol, it is an Exterior Gateway Protocol (EGP) designed for routing between autonomous systems. It adds unnecessary complexity here. The corporate network already uses OSPF (an Interior Gateway Protocol), so extending OSPF over the VPN is the most straightforward and operationally consistent method.

B. Configure a Static Route:
A static route pointing to the remote network via the IPsec tunnel is a piece of the puzzle but is not a complete solution. It is not scalable; every new subnet at the remote office would require another manual static route. More critically, it only provides one-way communication. The remote office FortiGate would need a static route for every corporate subnet, which is completely impractical. It also does not provide a secure transport on its own.

C. Configure Virtual Links:
A virtual link is an OSPF mechanism used to connect a disconnected Area Border Router (ABR) back to the OSPF backbone (Area 0) through a non-backbone area. It is used for repairing area connectivity within a single, contiguous OSPF autonomous system. It is not a tool for connecting two separate OSPF domains across the Internet and provides no security.

Reference
Fortinet Documentation: The FortiOS Handbooks for "IPsec VPN" and "Routing" provide explicit configuration guides for this design.
The solution involves creating a route-based IPsec VPN (which generates a tunnel interface).
OSPF is then configured to run on this tunnel interface, forming a neighbor relationship and exchanging routes dynamically.
Design Principle: This "OSPF over IPsec" model is a standard and recommended design for integrating branch offices into a corporate WAN, ensuring both security and efficient, dynamic routing.

Explanation:
In a hub-and-spoke IPsec VPN topology, the fundamental challenge for a link-state routing protocol like OSPF is the logical network design. While the hub is connected to multiple spokes, the spokes are not directly connected to each other; they can only communicate through the hub. This creates a logical multi-access network (like an Ethernet segment) over what is physically a set of point-to-point tunnels.
By default, OSPF treats such a multi-access network as a broadcast type. In a broadcast network, OSPF relies on a DR/BDR election process to manage the flooding of Link State Advertisements (LSAs). This process requires all routers on the segment to see each other's Hello packets to elect the DR and BDR and form adjacencies.

In a hub-and-spoke VPN, this fails because:
Spoke-to-spoke communication is typically not allowed or does not exist.
A spoke cannot see the Hello packets from other spokes.
This prevents a successful DR/BDR election, causing OSPF neighbor adjacencies to fail between the hub and the spokes.
Configuring the OSPF network-type as point-to-multipoint on the hub's tunnel interface is the mandatory correction for this scenario. This configuration:
Eliminates the DR/BDR election process entirely.
Treats the hub's connection to each spoke as an individual, logical point-to-point link.
Allows the hub to form a full OSPF adjacency directly with each spoke without requiring the spokes to see each other.
Correctly models the actual network topology, ensuring reliable and predictable routing.

Why the Other Options Are Incorrect

A. Set bfd enable in the router configuration:
Bidirectional Forwarding Detection (BFD) is a protocol used to provide rapid failure detection of the forwarding path between two routers. While it is an excellent feature for accelerating OSPF convergence in a VPN environment (highly recommended for production), it is strictly an enhancement. It is not mandatory for the initial formation of OSPF neighbor adjacencies. OSPF will form neighbors and exchange routes without BFD, albeit with slower failure detection.

C. & D. Set rfc1583-compatible enable in the router configuration:
This option is repeated and refers to a specific OSPF compatibility mode for calculating metrics for external routes (OSPF path selection for Type 1 and Type 2 external LSAs). This setting is related to the internal decision-making process of the OSPF algorithm after neighbors have already established adjacencies and exchanged routing information. It has absolutely no bearing on the underlying mechanics of neighbor discovery, Hello packet timers, or adjacency state formation, which is the core problem in a hub-and-spoke network.

Reference
Fortinet Documentation: The FortiOS Routing guide, specifically the section on OSPF configuration, addresses this exact scenario. It explicitly recommends setting the OSPF network type to point-to-multipoint on the hub interface in a hub-and-spoke VPN topology to ensure proper neighbor adjacency. This is a well-established best practice not just for FortiGate, but for OSPF implementation over VPNs in general.
