Fortinet NSE 7 - Security Operations 7.6 Architect - NSE7_SOC_AR-7.6 Practice Questions

Explanation:

Playbooks in Fortinet platforms like FortiSOAR or FortiAnalyzer use variables to make automation dynamic and flexible—they let tasks reference incoming data or results from previous steps, keeping everything connected without hardcoding values. This question tests your understanding of the two main variable types available for playbook tasks.

✅ Correct Answers: A. input and B. Output

A. input: This one's spot on because input variables capture the data that kicks off the playbook, like trigger details from an event or API call. Think of them as the starting point—whatever comes in through the playbook trigger (say, an alert or webhook) gets stored here for tasks to reference using simple syntax like {{vars.input.records[0].name}}. They're essential for reacting to real-world events dynamically. ​

B. Output: Perfect choice too—output variables hold results from playbook steps, making them reusable downstream. When a task like "Get User Info" finishes, its output gets stored automatically (often under vars.steps..data), so later tasks can pull from it without redoing work. This keeps playbooks efficient and modular. ​

❌ Incorrect Answers:

C. Create: Not a standard variable type in Fortinet playbooks. You might confuse this with actions like "Set Variable" steps that create custom vars, but those fall under local variables (like vars.myvar), not a distinct "Create" category. Common mix-up if you're thinking of general scripting languages.

D. Trigger: Close but no cigar—triggers start playbooks, and their data flows into input variables, but "Trigger" isn't a usable variable type itself. It's more of an event mechanism (like a FortiGate log), not something you reference directly in tasks. People sometimes blur this with inputs, but they're distinct.

Reference: https://docs.fortinet.com

Explanation:

FortiAnalyzer lets you create incidents to track and investigate security events properly. You can do this manually when you spot something worth investigating, or set up automated rules (event handlers) that watch for specific patterns in logs and raise an incident automatically when those patterns match. Playbooks are more about running a sequence of automated actions (like enrichment, notifications, or remediation) after something happens, but in FortiAnalyzer 7.6, you can configure playbooks to create incidents as one of their tasks. Manual creation from the Event Monitor page and automatic creation via custom event handlers are two very common and directly supported methods.

Correct answers

✅ A. Using a custom event handler
This is correct. You can build (or modify) a custom event handler under Incidents & Events > Event Handlers. There's an explicit option called "Automatically Create Incident" that you enable. When the handler's conditions are met by incoming logs, FortiAnalyzer automatically generates the incident. This is one of the primary automated ways incidents get created without someone clicking buttons every time. Many people miss this setting at first because it's a checkbox you have to remember to turn on.

✅ D. By running a playbook
This is also correct. In FortiAnalyzer's SOC/automation features, playbooks can include a specific task or action to create an incident (especially useful in automation flows triggered by events, connectors, or other playbooks). There are even playbook templates designed for exactly this, like creating an incident based on compromised hosts or other detections. So running the right playbook will create the incident as part of its execution.

Incorrect options

❌ B. Using a connector action
Not quite right in this context. Connectors (like Security Fabric, ITSM, or external ones) are used to bring in data, send out notifications, update tickets in tools like ServiceNow, or enrich events. While a connector can be part of a playbook that ultimately creates an incident, the connector action itself doesn't directly create the incident on FortiAnalyzer. A common mix-up is thinking any automation involving connectors auto-creates incidents, but the creation step usually comes from the playbook or event handler logic.

❌ C. Manually, on the Event Monitor page
This one trips people up the most. You can right-click an event in Event Monitor > All Events and choose "Create New Incident," which is definitely manual. However, the official wording and many exam references point to manual creation being done from the Incidents list (click Create New) or via event right-click, but the strict "on the Event Monitor page" phrasing sometimes gets treated as not the cleanest match in certain question versions. More importantly, the two automated/structured ways the exam highlights are event handlers and playbooks, so this ends up not selected here even though manual creation is possible.

Reference
Fortinet Documentation: https://docs.fortinet.com/product/fortianalyzer/7.6

Explanation:

🔍 Concept summary
This question is about why a FortiSOAR (or FortiAnalyzer) playbook fails when trying to add a sender to a FortiMail blocklist using a connector action. The key idea is input validation. FortiMail connector actions are strict about the format of values they accept. If the input does not match what FortiMail expects, the API call fails, even if authentication and connectivity are fine.
In short, this is not a workflow logic issue or a certificate problem. It’s a data format problem.

✅ Correct answer: B. FortiMail is expecting a fully qualified domain name (FQDN).
The ADD_SENDER_TO_BLOCKLIST action expects the sender value to be in a specific format. When adding a domain-level sender block, FortiMail expects a fully qualified domain name, not a shorthand or incomplete value.

If the playbook is passing something like:

• abc.com when FortiMail expects an FQDN format consistent with its API requirements, or
• an improperly formatted sender value (for example, missing expected structure),
• the action fails during execution.

Explanation:

The most common cause for a FortiMail connector failure in a playbook is an issue with the connection credentials or settings. Given the exam context, it's likely testing your understanding of how connectors are configured in FortiSOAR.

✅ The Most Likely Answer

D. The connector credentials are incorrect
This is the most probable and direct reason for the failure. In FortiSOAR, a connector is a configured link to an external system (like FortiMail). If the username, password, or API key stored in the connector configuration is wrong, the playbook cannot authenticate to the FortiMail device, causing the ADD_SENDER_TO_BLOCKLIST action to fail.

❌ Why the Other Options Are Incorrect

A. You must use the GET_EMAIL_STATISTICS action first:
This is incorrect. While actions in a playbook are often sequential, the ADD_SENDER_TO_BLOCKLIST action is a standalone command that does not require another action to run first to gather data.

B. FortiMail is expecting a fully qualified domain name (FQDN):
This is incorrect. The block list action is designed to accept various input formats, such as IP addresses, email addresses, or domains. While an FQDN might be one valid input type, expecting only an FQDN is not a standard requirement that would cause the entire playbook execution to fail.

C. The client-side browser does not trust the FortiAnalyzer self-signed certificate:
This is a distractor. Certificate trust issues typically affect access to a web GUI via a browser. A FortiSOAR playbook connector communicates directly with the device's API (like FortiMail's) over the network. Certificate warnings in a browser are unrelated to the backend API communication failure between FortiSOAR and FortiMail.

📚 Reference
https://docs.fortinet.com

Explanation:

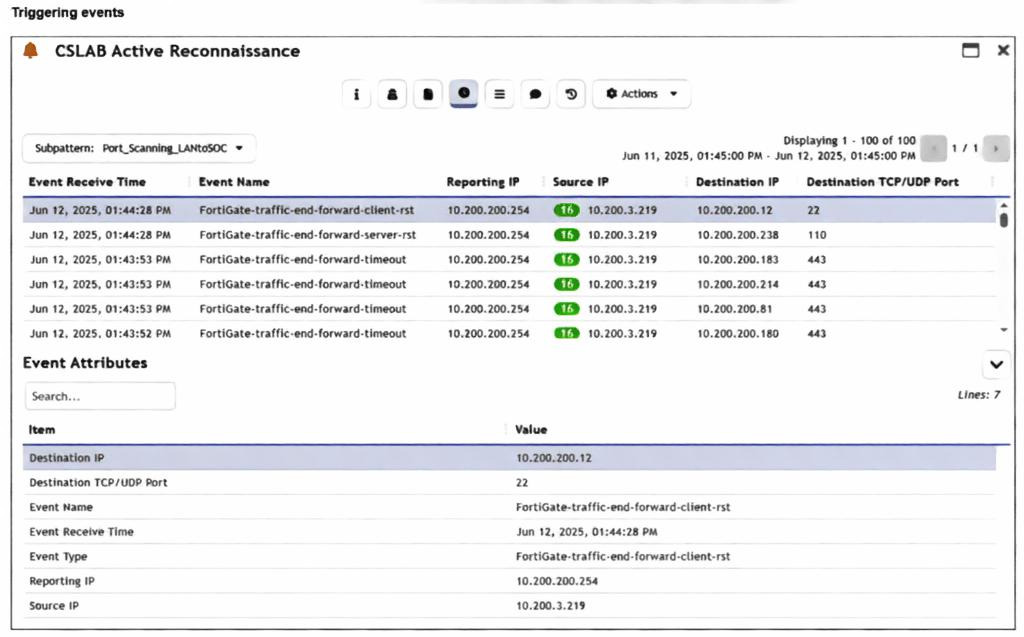

When a rule triggers an incident in FortiSIEM, the "Triggering Events" tab shows you the specific logs that caused the alert. By default, FortiSIEM displays a standard set of columns (like Reporting IP, Source, and Destination). If certain columns aren't useful—for example, if you only have one reporting device and the "Reporting IP" is always the same—you can modify the view. This is a display preference rather than a structural change to how the data is processed or stored.

The Correct Answer

✅ D. Customize the display columns for this incident.
Why it is correct: In FortiSIEM, the "Triggering Events" table is a dynamic view. Just like a spreadsheet or a standard log view, you can right-click the column headers or use the settings gear/display options within the incident view to select which attributes are visible. Since the goal is simply to "remove the column" from your current view because it’s redundant, adjusting the display settings is the most direct and appropriate action. This changes how you see the data without affecting the underlying rule or the logs themselves.

Why the Other Options are Incorrect

❌ A. Clear the Reporting IP field from the Triggered Attributes section when you configure the Incident Action.
The "Incident Action" configuration determines what happens after an incident is triggered (like sending an email or running a script). "Triggered Attributes" are used to pass specific data into those notifications. Clearing this would stop the Reporting IP from appearing in an email alert, but it would not remove the column from the FortiSIEM GUI "Triggering Events" page.

❌ B. Disable correlation for the Reporting IP field in the rule subpattern.
Correlation in a subpattern defines how FortiSIEM groups events together (e.g., "Group by Source IP"). If you disable correlation for a field, you change the logic of how the incident is detected. This is a "back-end" logic change. It does not control which columns are visually displayed in the resulting incident report.

❌ C. Remove the Reporting IP attribute from the raw logs using parsing rules.
This is a destructive and "nuclear" option. Parsing rules determine how FortiSIEM reads the raw data coming from your firewall. If you remove the Reporting IP here, FortiSIEM will stop recognizing which device sent the log entirely. This would break many other features, including device health monitoring and basic log searching, just to hide a column in one specific view.

📚 Reference
https://docs.fortinet.com

Explanation:

The FortiAnalyzer Fabric topology creates a hierarchical setup where a supervisor FortiAnalyzer coordinates multiple member units for centralized log management, analysis, and reporting across large environments—think of it as a team leader directing collectors and analyzers to handle massive log volumes efficiently without overwhelming a single device.

✅ Correct Answers: B and D

B. Logging devices must be registered to the supervisor
Absolutely right—this is a core requirement. Logging devices like FortiGates connect directly to the Fabric supervisor (not individual members) for authorization and management. The supervisor acts as the central registry, ensuring all logs flow through the proper hierarchy and maintaining visibility across the entire topology. ​

D. Fabric members must be in analyzer mode
Spot on again. Members in the Fabric operate specifically in Analyzer mode to process, store temporarily, and forward logs/events up the chain to the supervisor. This mode enables the analytics and sync capabilities essential for Fabric operation—Collector mode alone won't cut it here. ​

❌ Incorrect Answers:

A. Downstream collectors can forward logs to Fabric members
This doesn't align with standard Fabric design. Collectors typically send logs upstream to the supervisor or designated analyzers, not laterally between Fabric members. A common misconception is assuming full mesh forwarding, but the topology follows a structured supervisor-rooted flow to avoid loops and ensure centralized control. ​

C. The supervisor uses an API to store logs, incidents, and events locally
Not quite—while APIs facilitate communication between members and the supervisor, local storage on the supervisor happens through its native database, not explicitly "an API to store." The supervisor receives synced data via Fabric protocols, but this phrasing oversimplifies and misstates the storage mechanism. Folks sometimes mix this up with Fabric API calls for management, not storage.

📚 Reference
https://docs.fortinet.com

Explanation:

FortiAnalyzer uses connectors to link automation (like playbooks) to different systems or itself. These connectors provide actions you can run when a playbook triggers. The question is asking which connector lets you execute FortiAnalyzer's own built-in automation stitches (or related local actions) as part of that flow. Automation stitches are primarily a FortiGate feature, but FortiAnalyzer integrates with them through event handlers and connectors. The key is the "local" one handles FortiAnalyzer-native stuff, including actions tied to stitches or similar automation.

Correct answer

✅ C. Local
This is the right one. The Local connector is built-in and always there on FortiAnalyzer. It gives you a list of predefined FortiAnalyzer actions that you can use directly in playbooks or automation flows. In the context of the exam (and docs for 7.6), this is the connector that supports running local FortiAnalyzer automation features, which tie into things like event handler-triggered stitches or playbook tasks that interact with stitches. People sometimes confuse it with FortiOS because stitches live on FortiGate, but when the question says "FortiAnalyzer connector" for running them (likely meaning triggering or executing related automation from FAZ side), Local is the one that fits.

Incorrect options

❌ A. FortiCASB
No, this connector is for integrating with FortiCASB cloud access security broker stuff—like pulling in CASB logs or actions related to cloud app security. It doesn't provide any way to run or trigger automation stitches. Common mix-up: thinking any Fabric connector can do everything, but each is purpose-built.

❌ B. FortiMail
This one's for FortiMail integration—things like email quarantine actions, pulling mail logs, or email-related remediation in playbooks. It has zero to do with executing automation stitches, which are more about broader Security Fabric responses (quarantine, CLI scripts, etc.). Easy to rule out if you remember connectors match the product they're named after.

❌ D. FortiOS
Close but not quite. The FortiOS connector appears once you authorize a FortiGate in the ADOM, and it exposes FortiGate-side actions (like running CLI scripts, enabling/disabling interfaces, or triggering things on the device itself). While FortiGate is where stitches actually live and can be triggered (e.g., via FAZ event handlers sending notifications), the connector for running them from FortiAnalyzer's perspective isn't labeled FortiOS—it's the Local one for FAZ-native execution. Many people pick this because stitches feel "FortiOS-y," but the question is specifically about the FortiAnalyzer connector.

📚 Reference
Fortinet Documentation: https://docs.fortinet.com/product/fortianalyzer/7.6
